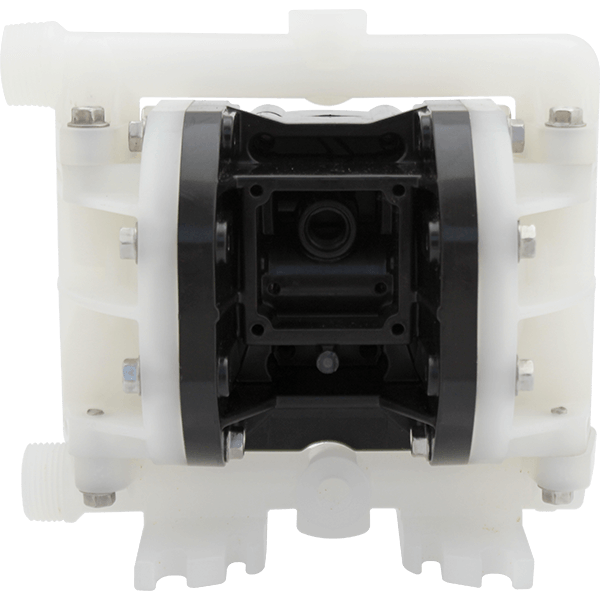

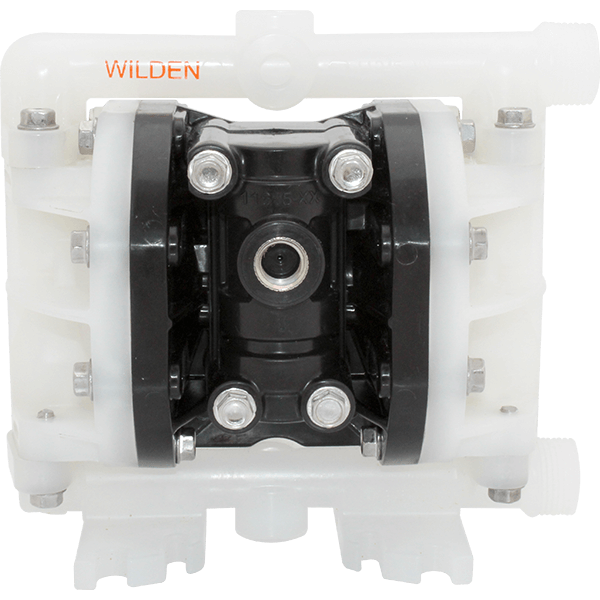

00-10190 PS25/KKPPP/ZWS/WF/KEP Combining elegant simplicity with maximum performance and efficiency that end users have come to depend on for more than 20 years, the 6 mm (1/4") Wilden® Pro-Flo® SHIFT Series PS25 Bolted Plastic AODD Pump offers improved flow rates and an optimized liquid path that reduces internal friction, maximizing output and extending diaphragm life. The Pro-Flo SHIFT PS25 pump provides the flexibility, reliability, performance and dependability required in challenging dosin
Note: For additional information, please refer to the PS25 Bolted Plastic Manual (EOM).
1/4" FNPT
6 mm (1/4")
6 mm (1/4")
FNPT/FBSPT (Threaded)
4.2 m (14') Dry, 8.5 m (28') Wet
21.6 lpm (5.7 gpm)
8.3 bar (120 psi)
1.6 mm (1/16")
0.0397 L (0.0105 gal)
| Material | Ship Weight |
|---|---|
| Polypropylene / Conductive Polypropylene | 1.2 kg (2.6 lb) |
| PVDF / Conductive PVDF | 1.7 kg (3.8 lb) |
| Description | Material |
|---|---|
| Center Section | Polypropylene, Conductive Polypropylene |
| Air Valve | Polypropylene, Conductive Polypropylene |
| Material | Temperature Limits |
|---|---|
| Buna-N | -12°C to 82°C (10°F to 180°F) |
| EPDM | -51°C to 138°C (-60°F to 280°F) |
| Geolast® | -40°C to 82°C (-40°F to 180°F) |
| FKM | -40°C to 177°C (-40°F to 350°F) |
| PTFE* | 4°C to 104°C (40°F to 220°F) |
| Wil-Flex™ | -40°C to 107°C (-40°F to 225°F) |
