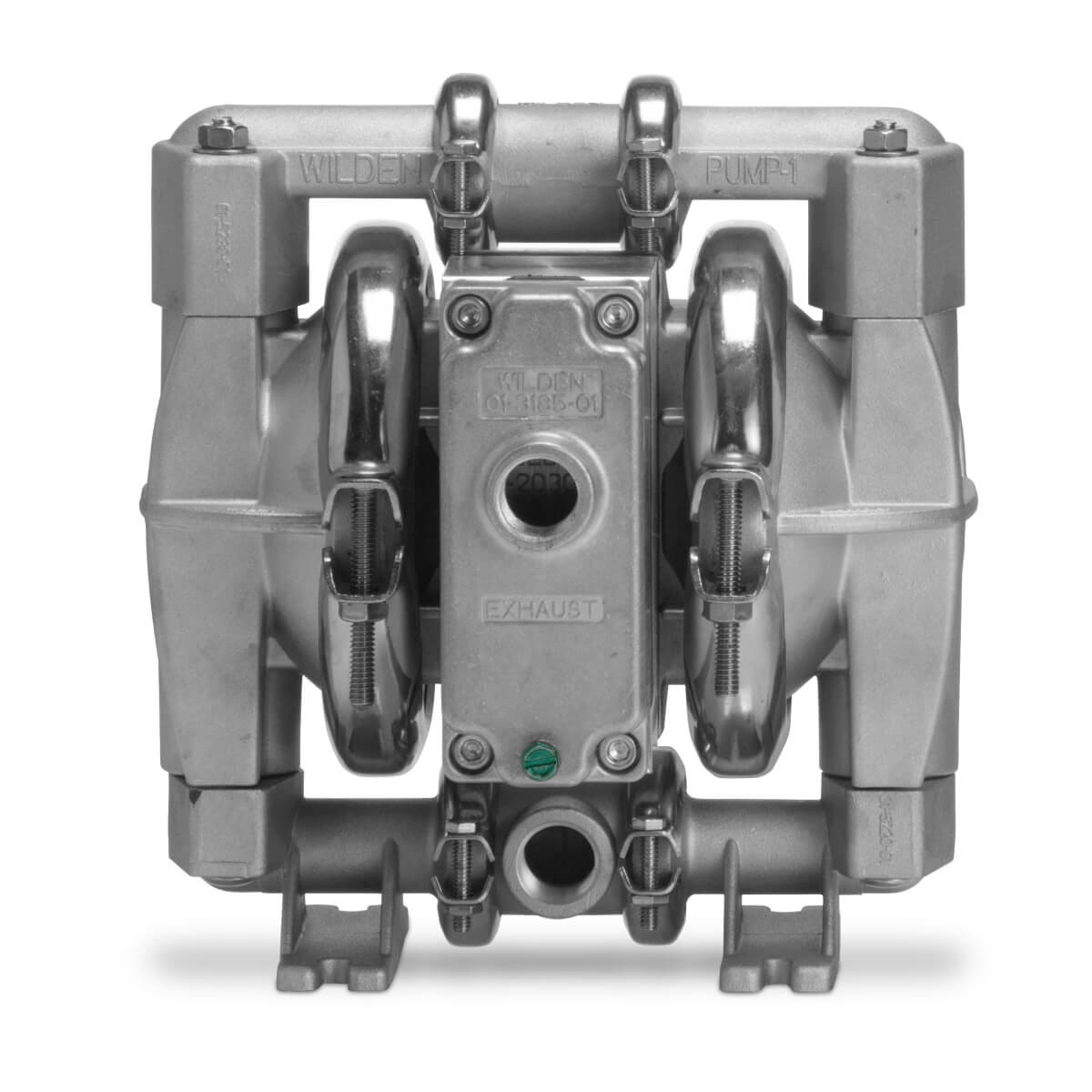

WILDEN 13 mm 1/4 inch Pro-Flo® SHIFT Series Clamped Metal AODD Pump 01-11233 XPS1/AAAAA/TEU/TF/ATF

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS1 Metal Manual.

Flow Curve – PTE-Fitted

Note: Additional performance curves can be found in the PS1 Metal Manual.

Air Inlet

• 1/2" FNPT

Liquid Inlet

• 13 mm (1/2")

Liquid Discharge

• 13 mm (1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 60.2 lpm (15.9 gpm)

• TPE – 60.2 lpm (15.9 gpm)

• PTFE – 59.8 lpm (15.8 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 1.6 mm (1/16")

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.9 m (19.3') Dry, 9.8 m (32.3') Wet

• TPE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet

• PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.10 L (0.027 gal)

• TPE – 0.10 L (0.026 gal)

• PTFE – 0.10 L (0.026 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
