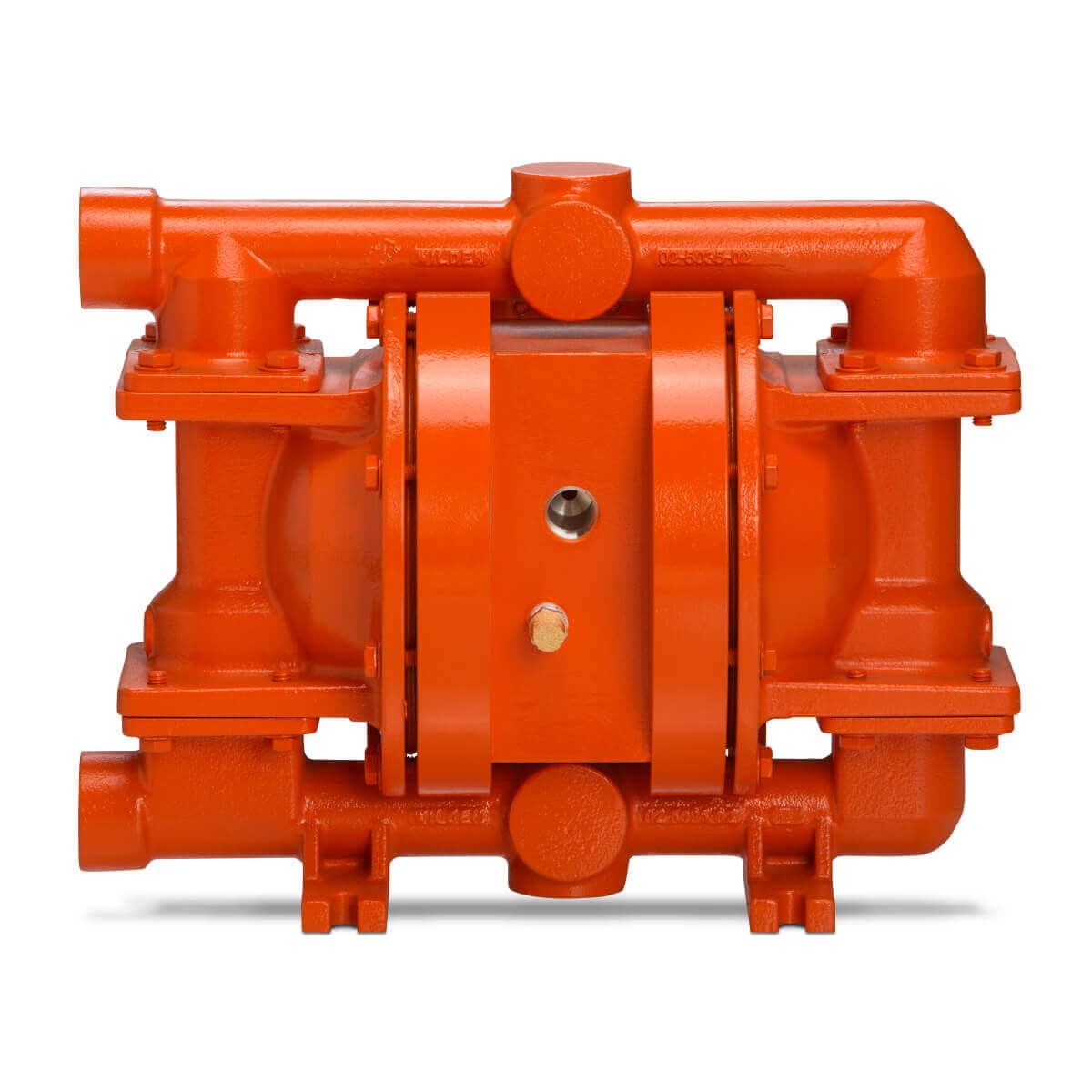

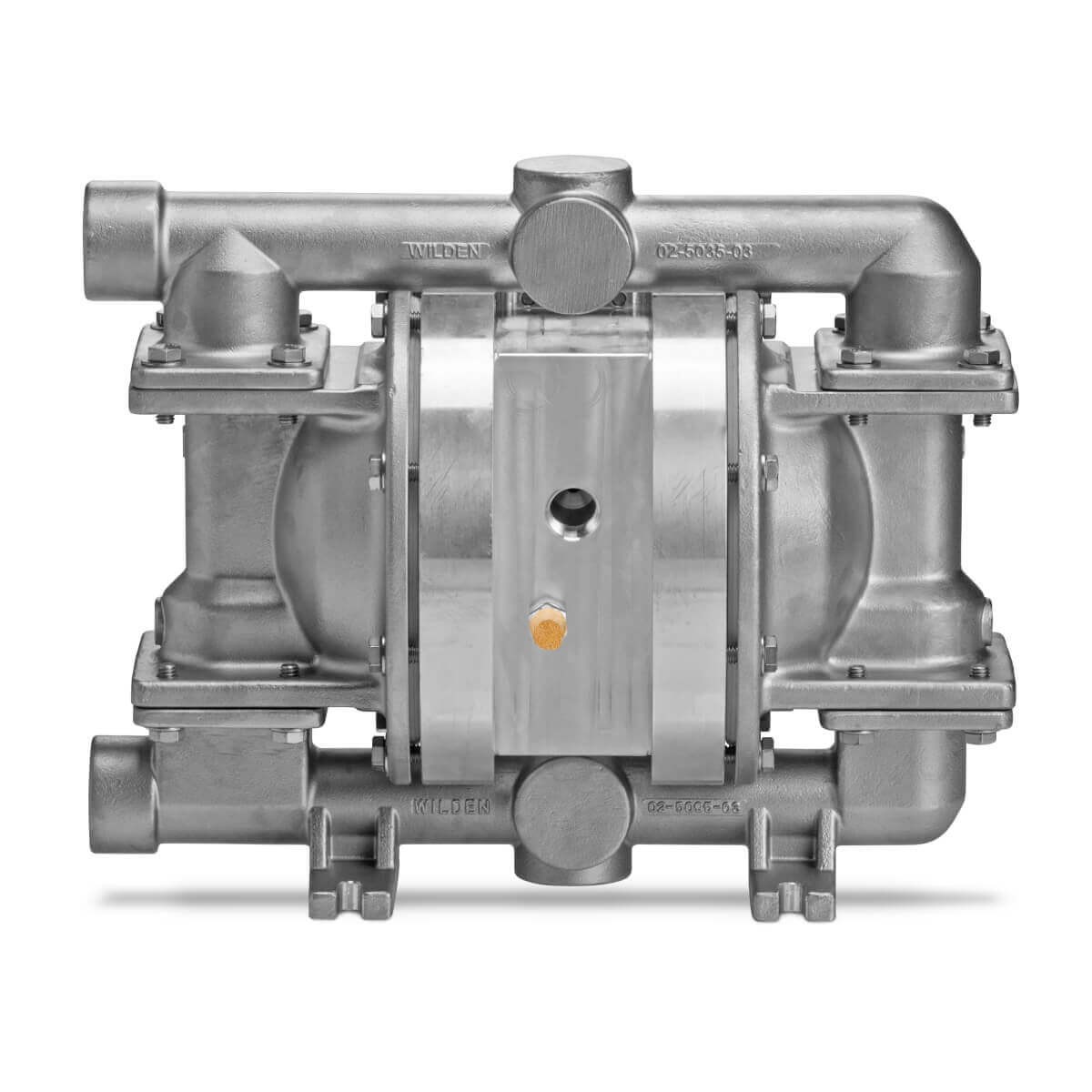

Wilden 25 mm 1 inch Pro-Flo® SHIFT Series Bolted Metal AODD Pump 02-13023 XPS220/AAAAA/FSS/FS/SFS/0677 Wilden 25 mm 1 inch Pro-Flo® SHIFT Series Bolted Metal AODD Pump 02-13023 XPS220/AAAAA/FSS/FS/SFS/0677

Wilden 25 mm 1 inch Pro-Flo® SHIFT Series Bolted Metal AODD Pump 02-13023 XPS220/AAAAA/FSS/FS/SFS/0677

02-13023 XPS220/AAAAA/FSS/FS/SFS/0677 The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

PDF
Product Description:
AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 25 mm (1")

LIQUID DISCHARGE

  • 25 mm (1")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

  • DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

  • Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet

  • TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet


Performance and Specifications

Dimensions

Dim-PS220-230_2 mm-1in-PF-SBMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS220/PS230 Metal Manual.

Flow Curve – TPE-Fitted

Flo-P200-25mm1in-BPP

Note: Additional performance curves can be found in the PS220/PS230 Metal Manual.

AIR INLET

  • 1/2" FNPT

LIQUID INLET

  • 25 mm (1")

LIQUID DISCHARGE

  • 25 mm (1")

CONNECTION TYPE

  • NPT/BSPT (Threaded)

  • DIN/ANSI (Flanged)

MAX FLOW RATE

  • Rubber – 204 lpm (54 gpm)

  • TPE – 212 lpm (56 gpm)

  • Full-Stroke PTFE – 197 lpm (52 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

  • Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet

  • TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

  • Rubber – 0.30 L (0.08 gal)

  • TPE – 0.26 L (0.07 gal)

  • Full-Stroke PTFE – 0.30 L (0.08 gal)

    • * 1 cycle = 2 strokes

Wetted Housings

MaterialShip Weight
Aluminum19 kg (41 lb)
Ductile Iron29 kg (64 lb)
Stainless Steel31 kg (68 lb)
Alloy C36 kg (80 lb)

Non-Wetted Housings

DescriptionMaterial
Center SectionAluminum
Air ValveAluminum

Elastomer Options

MaterialTemperature Limits
Buna-N-12°C to 82°C (10°F to 180°F)
EPDM-51°C to 138°C (-60°F to 280°F)
FKM-40°C to 177°C (-40°F to 350°F)
Geolast®-40°C to 82°C (-40°F to 180°F)
Neoprene-18°C to 93°C (0°F to 200°F)
PTFE*4°C to 104°C (40°F to 220°F)
Polyurethane-12°C to 66°C (10°F to 150°F)
Saniflex™-29°C to 104°C (-20°F to 220°F)
Wil-Flex™-40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only

Other models are recommended：

NumberingDescriptionNumberingDescription
02-12897XPS220/AAAAA/BNS/BN/ABN02-12944XPS220/SSAAA/TWS/TF/STF/0678
02-12898XPS220/AAAAA/BNS/BN/ABN/001402-13022XPS220/SSAAA/TWS/TF/STF/0697
02-12899XPS220/AAAAA/BNS/BN/ABN/067702-12923XPS220/SSAAA/VTS/VT/SVT
02-12900XPS220/AAAAA/BNS/BN/ABN/067802-12914XPS220/SSAAA/VTS/VT/SVT/0014
02-12901XPS220/AAAAA/EPS/EP/AEP02-12932XPS220/SSAAA/VTS/VT/SVT/0677
02-12902XPS220/AAAAA/EPS/EP/AEP/001402-12941XPS220/SSAAA/VTS/VT/SVT/0678
02-12903XPS220/AAAAA/EPS/EP/AEP/067702-13011XPS220/SSAAA/VTS/VT/SVT/0697
02-12904XPS220/AAAAA/EPS/EP/AEP/067802-12924XPS220/SSAAA/WFS/WF/SWF
02-13023XPS220/AAAAA/FSS/FS/SFS/067702-12915XPS220/SSAAA/WFS/WF/SWF/0014
02-13122XPS220/AAAAA/FSS/VT/AVT/067702-12933XPS220/SSAAA/WFS/WF/SWF/0677
02-12893XPS220/AAAAA/NES/NE/ANE02-12942XPS220/SSAAA/WFS/WF/SWF/0678
02-12894XPS220/AAAAA/NES/NE/ANE/001402-12928XPS220/SZAAA/WWL/WF/SWF
02-12895XPS220/AAAAA/NES/NE/ANE/067702-12919XPS220/SZAAA/WWL/WF/SWF/0014
02-12896XPS220/AAAAA/NES/NE/ANE/067802-12937XPS220/SZAAA/WWL/WF/SWF/0677
02-13040XPS220/AAAAA/TSS/TF/ATF/067702-12946XPS220/SZAAA/WWL/WF/SWF/0678
02-12965XPS220/AAAAA/TWS/TF/ATF02-12979XPS220/WWAAA/BNS/BN/MBN
02-12966XPS220/AAAAA/TWS/TF/ATF/001402-12980XPS220/WWAAA/BNS/BN/MBN/0014
02-12967XPS220/AAAAA/TWS/TF/ATF/067702-12981XPS220/WWAAA/BNS/BN/MBN/0677
02-12968XPS220/AAAAA/TWS/TF/ATF/067802-12982XPS220/WWAAA/BNS/BN/MBN/0678
02-13014XPS220/AAAAA/TWS/TF/ATF/069802-12983XPS220/WWAAA/EPS/EP/MEP
02-12905XPS220/AAAAA/VTS/VT/AVT02-12984XPS220/WWAAA/EPS/EP/MEP/0014
02-12906XPS220/AAAAA/VTS/VT/AVT/001402-12975XPS220/WWAAA/NES/NE/MNE
02-12907XPS220/AAAAA/VTS/VT/AVT/067702-12976XPS220/WWAAA/NES/NE/MNE/0014
02-12908XPS220/AAAAA/VTS/VT/AVT/067802-12995XPS220/WWAAA/TWS/TF/MTF
02-12909XPS220/AAAAA/WFS/WF/AWF02-12996XPS220/WWAAA/TWS/TF/MTF/0014
02-12910XPS220/AAAAA/WFS/WF/AWF/001402-12997XPS220/WWAAA/TWS/TF/MTF/0677
02-12973XPS220/AAAAA/WFS/WF/AWF/067702-12998XPS220/WWAAA/TWS/TF/MTF/0678
02-12974XPS220/AAAAA/WFS/WF/AWF/067802-12987XPS220/WWAAA/VTS/VT/MVT
02-13235XPS220/AZAAA/WWL/TF/AWF02-12988XPS220/WWAAA/VTS/VT/MVT/0014
02-12969XPS220/AZAAA/WWL/WF/AWF02-12989XPS220/WWAAA/VTS/VT/MVT/0677
02-12970XPS220/AZAAA/WWL/WF/AWF/001402-12991XPS220/WWAAA/WFS/WF/MWF
02-12971XPS220/AZAAA/WWL/WF/AWF/067702-12992XPS220/WWAAA/WFS/WF/MWF/0014
02-12972XPS220/AZAAA/WWL/WF/AWF/067802-12993XPS220/WWAAA/WFS/WF/MWF/0677
02-12921XPS220/SSAAA/BNS/BN/SBN02-12994XPS220/WWAAA/WFS/WF/MWF/0678
02-12912XPS220/SSAAA/BNS/BN/SBN/001402-12999XPS220/WZAAA/WWL/WF/MWF
02-12930XPS220/SSAAA/BNS/BN/SBN/067702-13000XPS220/WZAAA/WWL/WF/MWF/0014
02-12939XPS220/SSAAA/BNS/BN/SBN/067802-12957XPS230/SSAAA/BNS/BN/SBN
02-12922XPS220/SSAAA/EPS/EP/SEP02-12948XPS230/SSAAA/BNS/BN/SBN/0504
02-12913XPS220/SSAAA/EPS/EP/SEP/001402-12958XPS230/SSAAA/EPS/EP/SEP
02-12931XPS220/SSAAA/EPS/EP/SEP/067702-12949XPS230/SSAAA/EPS/EP/SEP/0504
02-12940XPS220/SSAAA/EPS/EP/SEP/067802-12961XPS230/SSAAA/FSS/FS/SFS
02-12925XPS220/SSAAA/FSS/FS/SFS02-12952XPS230/SSAAA/FSS/FS/SFS/0504
02-12934XPS220/SSAAA/FSS/FS/SFS/067702-12956XPS230/SSAAA/NES/NE/SNE
02-12938XPS220/SSAAA/NES/NE/SBN/067802-12947XPS230/SSAAA/NES/NE/SNE/0504
02-12920XPS220/SSAAA/NES/NE/SNE02-12963XPS230/SSAAA/TSS/TF/STF
02-12911XPS220/SSAAA/NES/NE/SNE/001402-12954XPS230/SSAAA/TSS/TF/STF/0504
02-12929XPS220/SSAAA/NES/NE/SNE/067702-12962XPS230/SSAAA/TWS/TF/STF
02-12927XPS220/SSAAA/TSS/TF/STF02-12953XPS230/SSAAA/TWS/TF/STF/0504
02-12918XPS220/SSAAA/TSS/TF/STF/001402-12959XPS230/SSAAA/VTS/VT/SVT
02-12936XPS220/SSAAA/TSS/TF/STF/067702-12950XPS230/SSAAA/VTS/VT/SVT/0504
02-12945XPS220/SSAAA/TSS/TF/STF/067802-12960XPS230/SSAAA/WFS/WF/SWF
02-12926XPS220/SSAAA/TWS/TF/STF02-12951XPS230/SSAAA/WFS/WF/SWF/0504
02-12917XPS220/SSAAA/TWS/TF/STF/001402-12964XPS230/SZAAA/WWL/WF/SWF
02-12935XPS220/SSAAA/TWS/TF/STF/067702-12955XPS230/SZAAA/WWL/WF/SWF/0504


MAX FLOW RATE

  • Rubber – 204 lpm (54 gpm)

  • TPE – 212 lpm (56 gpm)

  • Full-Stroke PTFE – 197 lpm (52 gpm)

MAX PRESSURE

  • 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4")

DISPLACEMENT PER STROKE *

  • Rubber – 0.30 L (0.08 gal)

  • TPE – 0.26 L (0.07 gal)

  • Full-Stroke PTFE – 0.30 L (0.08 gal)

    • * 1 cycle = 2 strokes
